Steel Wheel Rim 14X22.5 for Agricultural Machinery, Floatation, Forestry, Havesty, Trailer

Still deciding? Get samples of $ !
Request Sample

Product Description

Basic Information
Model NO.
14x22.5
Diameter
≥22"
Type
Tubeless
Certification
ISO, DOT, CCC, ECE
Usage
Tractors, Harvesters, Cultivators
Tire Design
Radial Tyre
Main Market
Europe
Transport Package
Pallets
HS Code
870870
Origin
China
Product Description

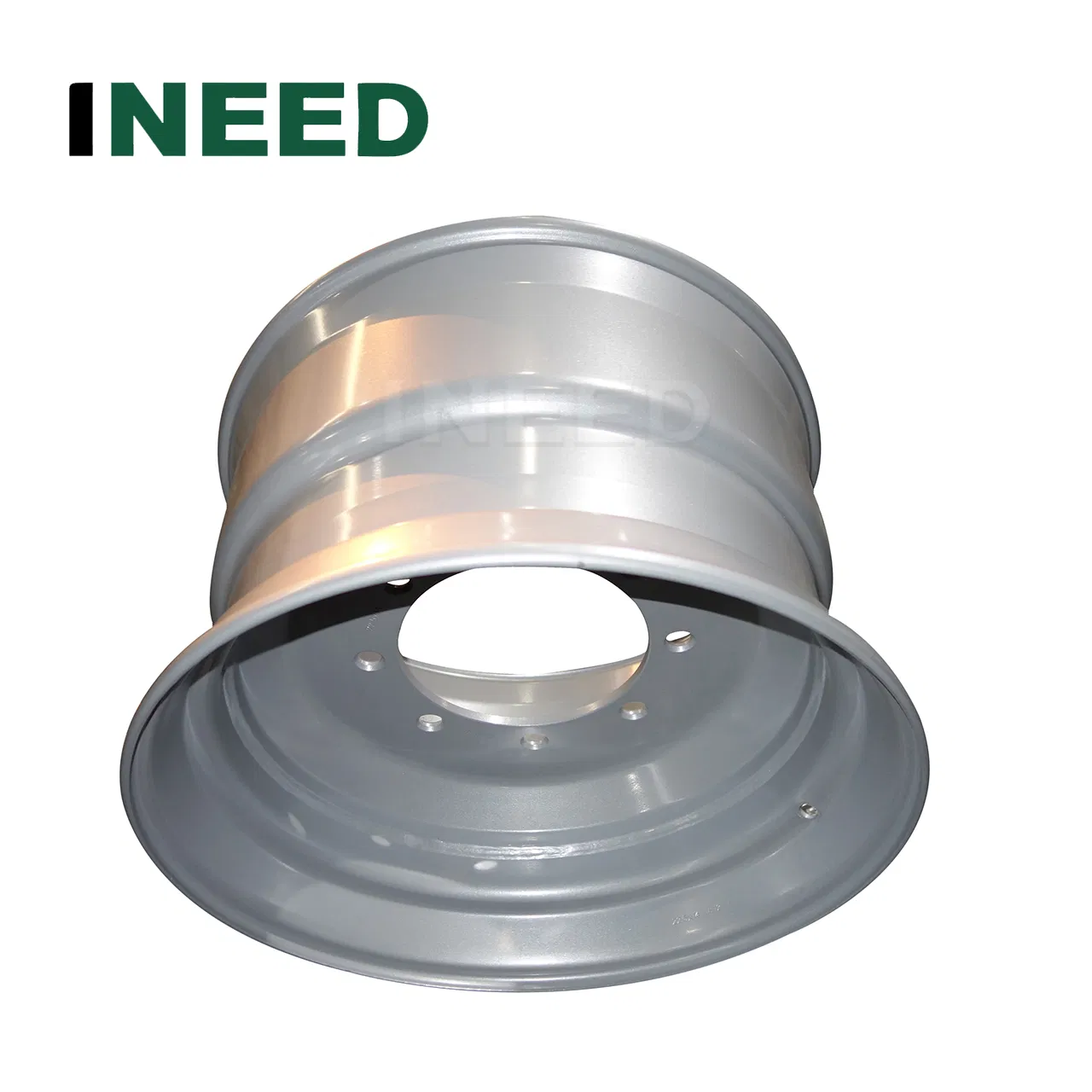

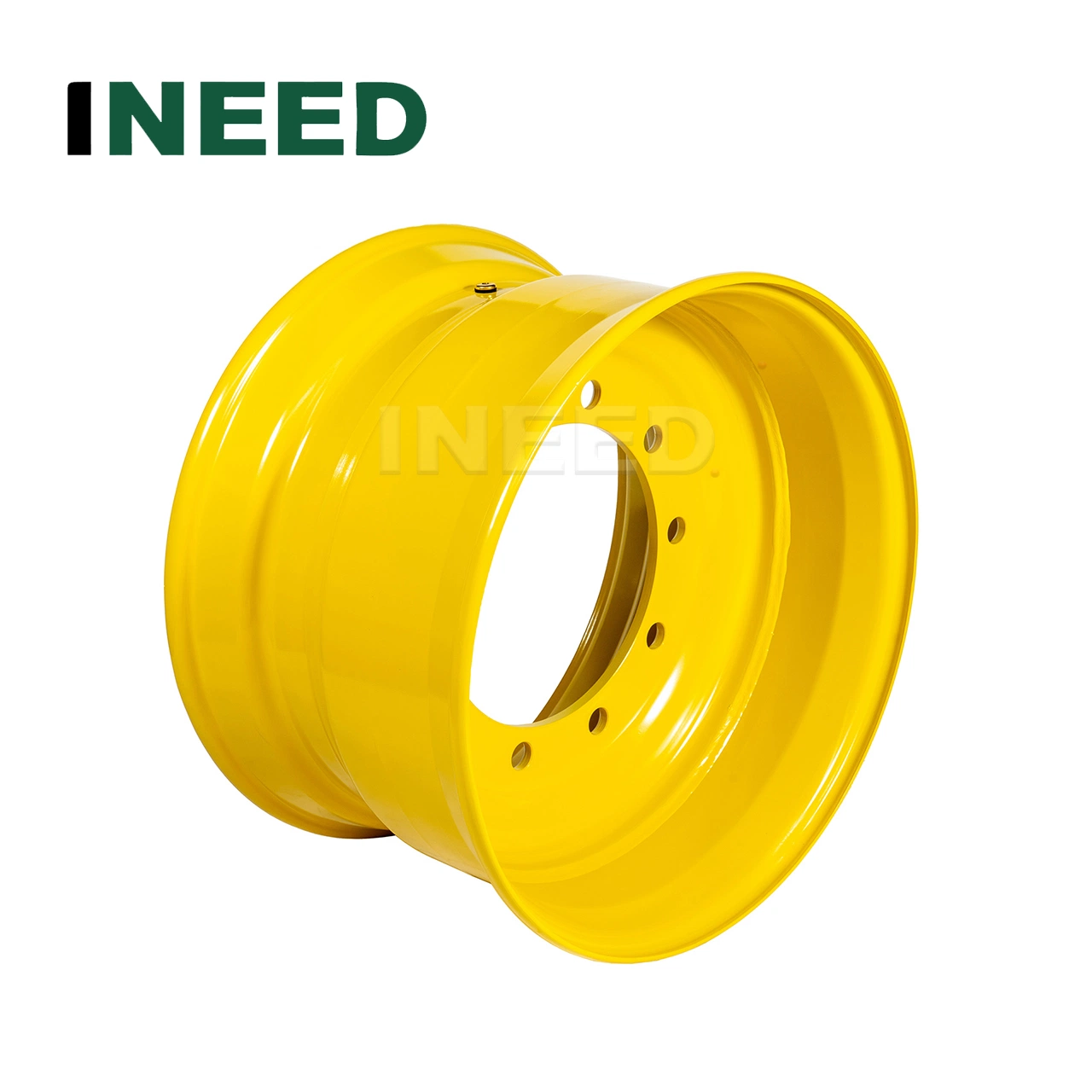

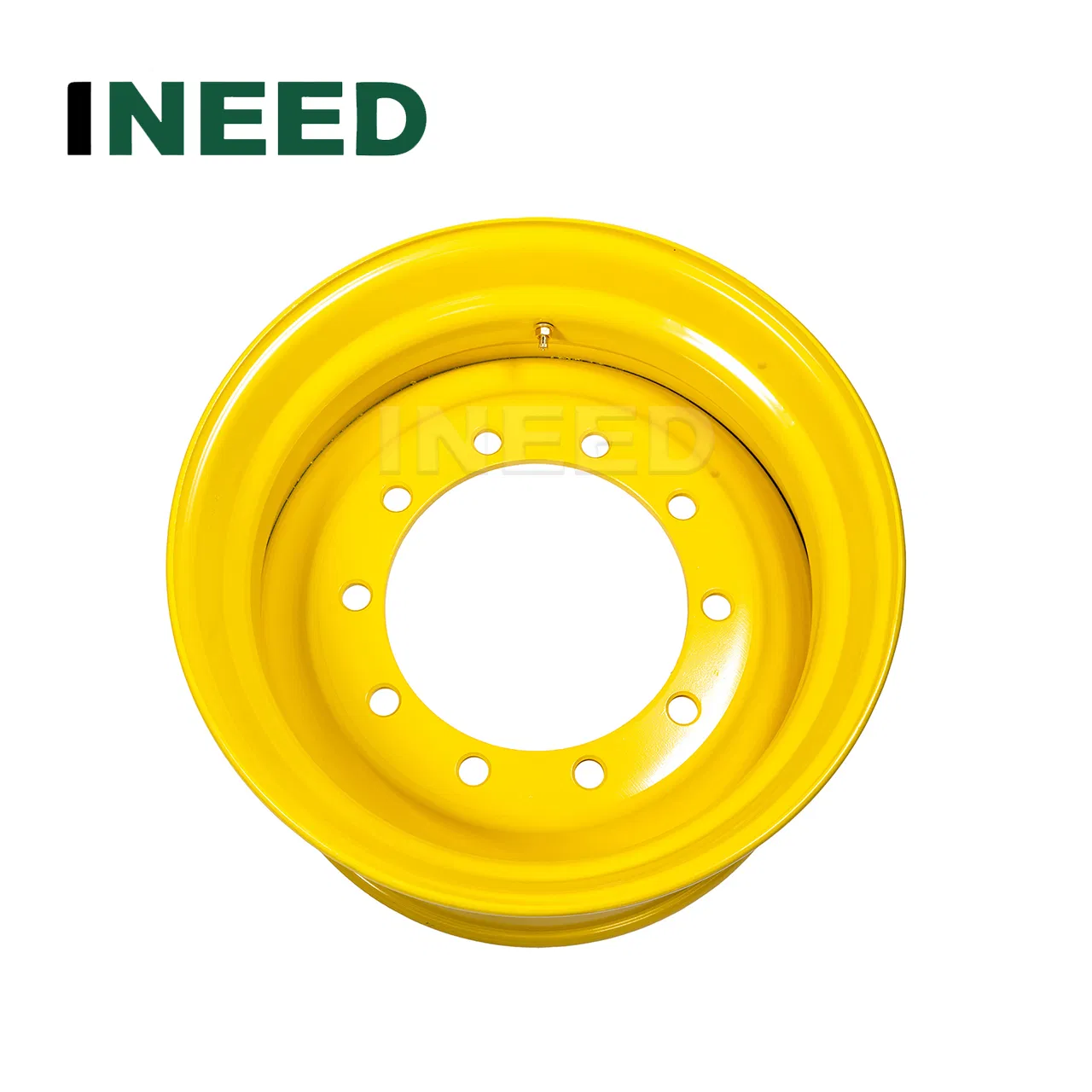

Steel Wheel Rim 14X22.5 for Agricultural Machinery
Inch Wheel Size Tyre Size Part Number P.C.D (mm) Center Hole (mm) Hole Type Bolt Holes Offset (mm)
22.5 14.00x22.5 18R22.5, 425/65R22.5, 445/50R26.5 141275A2P0 275 221 A2 8 0
141335A3P0 335 281 A3 10 0
141335B33N50 335 281 B33 10 Negative 50
Other Available Sizes
Inch Wheel Size Tyre Size P.C.D (mm) Center Hole (mm) Bolt Holes Offset (mm)
15.3 9x15.3 10.0/75-15.3, 11.5/80-15.3 140/205 94/161 6 0
15.5 13x15.5 400/60-15.5 205 161 6 0/N35
17 13x17 / 16x17 15.0/55-17, 19.0/45-17 205 161 6 0
17.5 6.75x17.5 215/75R17.5, 235/75R17.5 205/275 161/221 6/8 0/141/145
19.5 14.00x19.5 435/50R19.5, 445/65R19.5 205/275/225 161/221/176 6/8/10 0
26.5 20x26.5 600/55R26.5, 650/55R26.5 275/335 221/281 8/10 0/Negative 50
32 DW27x32 30.5L32, 800/65R32 335/275 281/221 10/8 0/Neg 50/Neg 74
Frequently Asked Questions
What applications are these steel wheel rims suitable for?
These wheel rims are specifically designed for agricultural machinery, including tractors, harvesters, cultivators, flotation trailers, and forestry equipment.
Which quality certifications do these wheels meet?
Our steel wheel rims are manufactured to meet international standards and hold certifications such as ISO, DOT, CCC, and ECE, ensuring high reliability and safety.
Are these rims compatible with tubeless tires?
Yes, these are tubeless-type (TL) wheel rims, which offer improved heat dissipation and reduced weight compared to tube-type alternatives.
What is the advantage of the radial tire design used with these rims?
The radial design provides better ground contact, improved fuel efficiency, and higher durability for heavy-duty agricultural and industrial tasks.
Can the offset and bolt patterns be customized?
Yes, as shown in our technical specification tables, we offer various P.C.D. configurations, center hole diameters, and both positive and negative offsets to fit different machine models.
How are the products packaged for international transport?
To ensure safe delivery to international markets like Europe, the wheel rims are securely packed on pallets to prevent damage during transit.
