20X22.5 Flotation Wheels for Agriculture

Customization: Available
Material: Steel
Type: Rim

Product Description

Basic Specifications

Model NO.
20x22.5
Wheel Hub Dia.
21-24"
Finishing
Painting
Certification
ISO, CE, DOT
Color
Silver
Origin
China
HS Code
870870
Capacity
10X40hq/Month

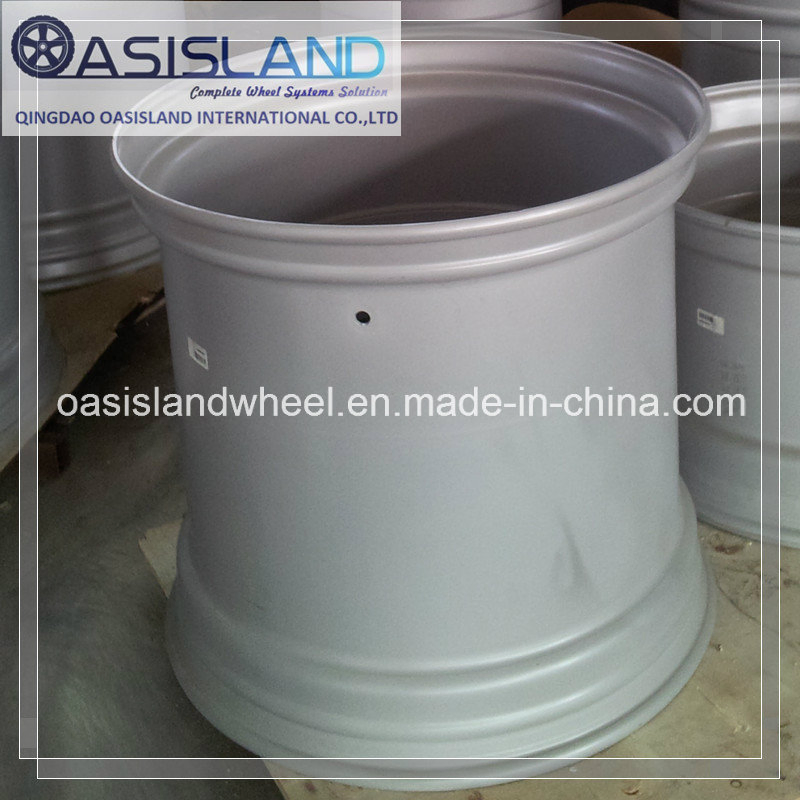

20x22.5 Flotation Wheels for Agriculture

TUV/DOT Certificate Approved
Standard: ETRTO/TRA/JATMA
2-Year Quality Guarantee
Tire Assembly Available

Technical Parameters

Rim Size Stud Holes PC Dia. C.B Offset/ET Thickness (mm)
No. Dia. Rim Disc
22.5x20.00 8 Φ27 Φ275 Φ221 0./-50 7 15.00
22.5x20.00 10 Φ27 Φ335 Φ281 -50 7 15.00

Available Size Ranges

Diameter Rim Size Fitted Tyre Application
15.3" 9.00X15.3 10.0/75-15.3, 11.5/80-15.3, 12.5/80-15.3
15.5" 15.5x13.00 / 16.00 400/65-15.5, 500/55-15.5
16" W8x16 / 11.00x16 10.0/65-16, 13.0/55-16
17" 16.00x17 19.0/45-17, 500/50-17
22.5" 22.5x11.75 to 22.5x24.00 385/65R22.5, 445/65R22.5, 600/50-22.5, 700/45-22.5
26.5" 26.5x20.00 to 26.5x28.00 600/55-26.5, 700/50-26.5, 800/45-26.5

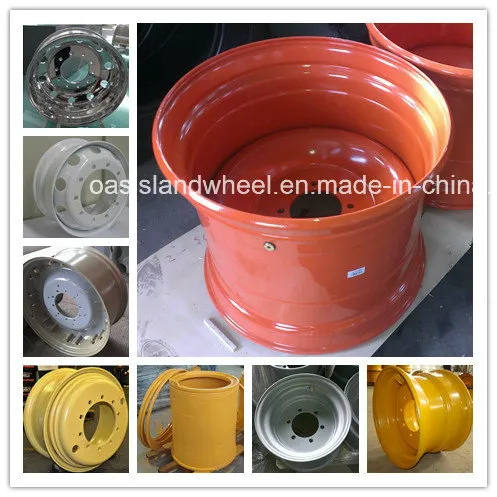

Product Display

Frequently Asked Questions

What certifications do these flotation wheels carry?
The wheels are TUV, DOT, ISO, and CE certified, meeting international standards including ETRTO, TRA, and JATMA.
Is there a warranty for agricultural wheels?
Yes, we provide a 2-year guarantee on our flotation wheels to ensure long-term performance in agricultural environments.
Can I purchase the wheel rim with a tire already assembled?
Absolutely. Complete wheel with tire assembly services are available upon request.
What are the available packaging options?
The standard packing for these wheels is on pallets to ensure safe transportation and easy handling.
What sizes of flotation wheels do you offer?
Our range covers diameters from 15.3 inches up to 26.5 inches, including popular sizes like 22.5x11.75, 22.5x16.00, and 22.5x20.00.
What is the monthly production capacity?
Our current production capacity is approximately 10 x 40HQ containers per month.
