Steel Wheel for Agriculture Machines Implment Flotation Trailers, Spreaders, Harvesters and Tanker Bins Wheel Rim 16.00X22.5
Steel Wheel for Agriculture Machines Implment Flotation Trailers, Spreaders, Harvesters and Tanker Bins Wheel Rim 16.00X22.5
Steel Wheel for Agriculture Machines Implment Flotation Trailers, Spreaders, Harvesters and Tanker Bins Wheel Rim 16.00X22.5
Steel Wheel for Agriculture Machines Implment Flotation Trailers, Spreaders, Harvesters and Tanker Bins Wheel Rim 16.00X22.5
Steel Wheel for Agriculture Machines Implment Flotation Trailers, Spreaders, Harvesters and Tanker Bins Wheel Rim 16.00X22.5
1 / 5
Steel Wheel for Agriculture Machines Implment Flotation Trailers, Spreaders, Harvesters and Tanker Bins Wheel Rim 16.00X22.5
Steel Wheel for Agriculture Machines Implment Flotation Trailers, Spreaders, Harvesters and Tanker Bins Wheel Rim 16.00X22.5
Steel Wheel for Agriculture Machines Implment Flotation Trailers, Spreaders, Harvesters and Tanker Bins Wheel Rim 16.00X22.5
Steel Wheel for Agriculture Machines Implment Flotation Trailers, Spreaders, Harvesters and Tanker Bins Wheel Rim 16.00X22.5
Steel Wheel for Agriculture Machines Implment Flotation Trailers, Spreaders, Harvesters and Tanker Bins Wheel Rim 16.00X22.5

Steel Wheel for Agriculture Machines Implment Flotation Trailers, Spreaders, Harvesters and Tanker Bins Wheel Rim 16.00X22.5

Customization: Available
Material: Steel
Type: Rim
Send Inquiry

Product Description

■ Basic Information
Model NO.
16.00X22.5
Wheel Hub Diameter
22.5"
Finishing
Painting
Wheel Accessories
Disc
Spoke Type
Weld Disc
Certification
ISO, DOT
Wheel Hub Brand
Multistar
Rim Type
Tubeless
Fitted Tyre
500/60-22.5, 550/60-22.5, 550/45-22.5
Assembly
Available (Tyre with Rim)
Fitted Machinery
Tractor, Farm Trailer, Chaser Bin etc.
Transport Package
in Pallets
Specification
22.5x16.00
Trademark
MULTISTAR
Origin
China
HS Code
87087050
■ Product Description

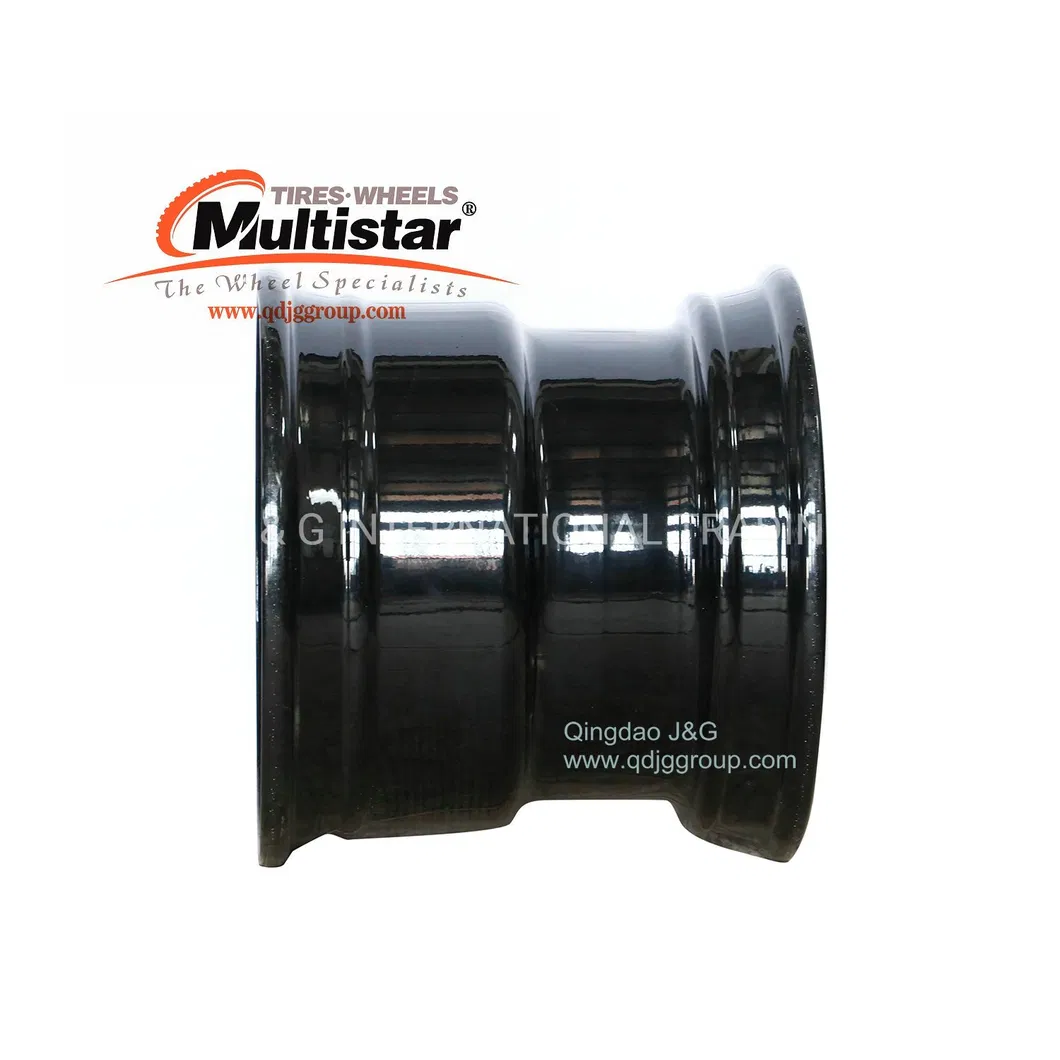

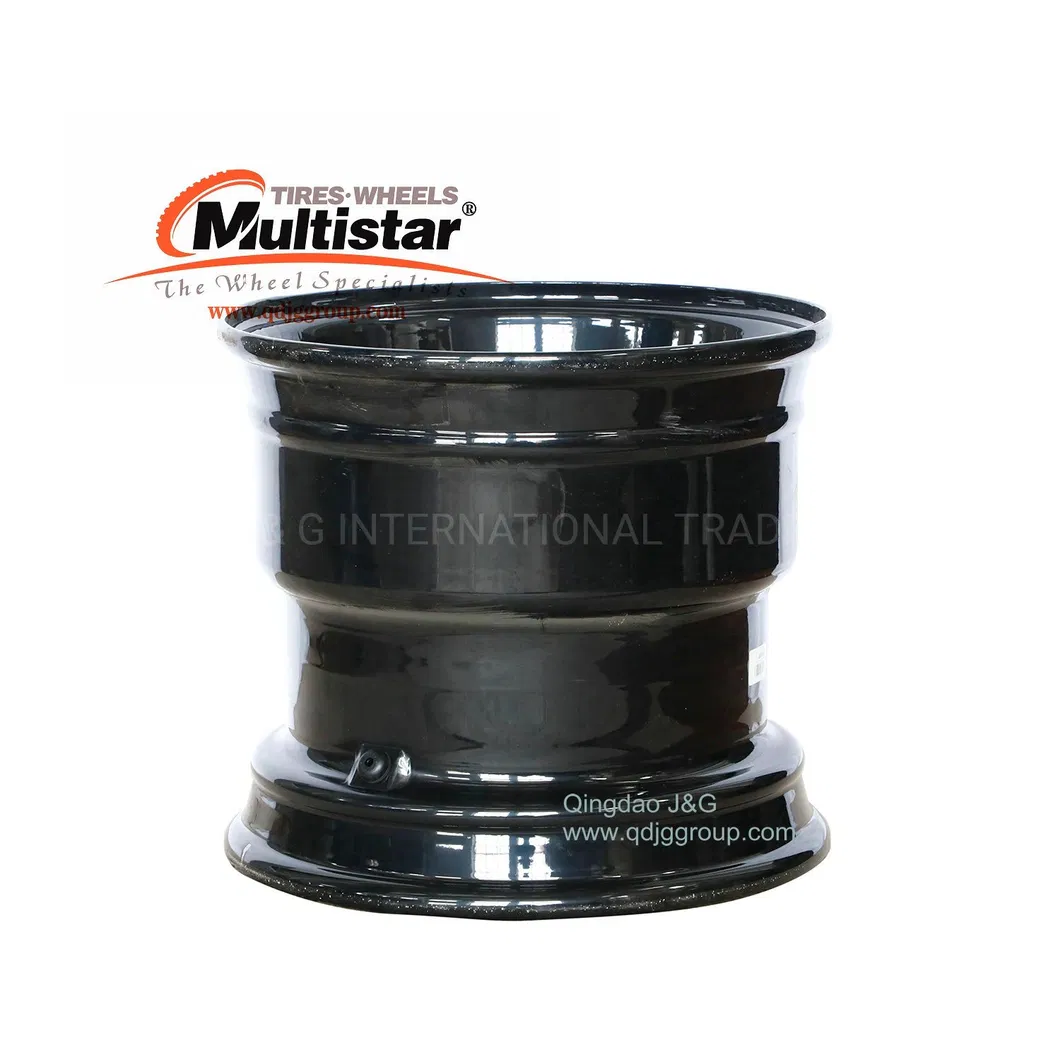

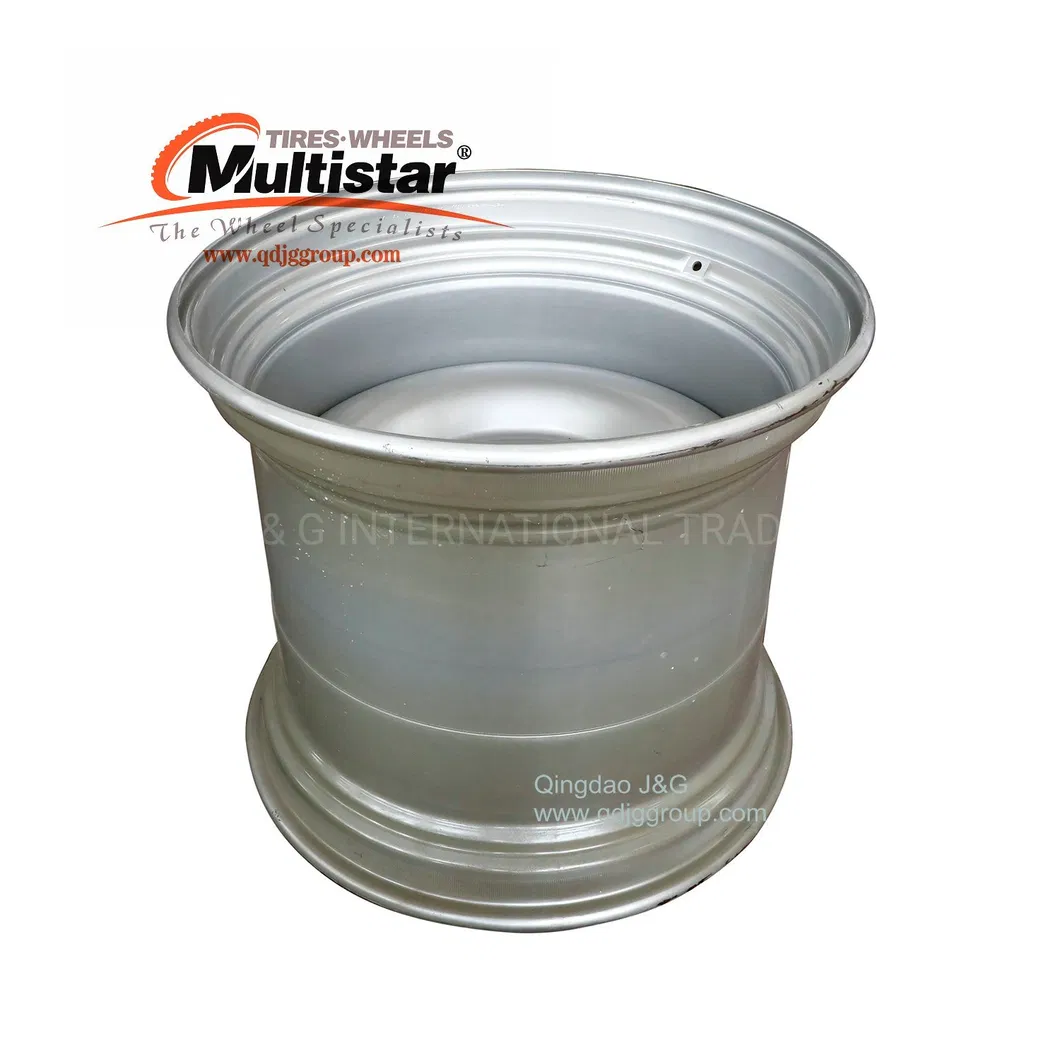

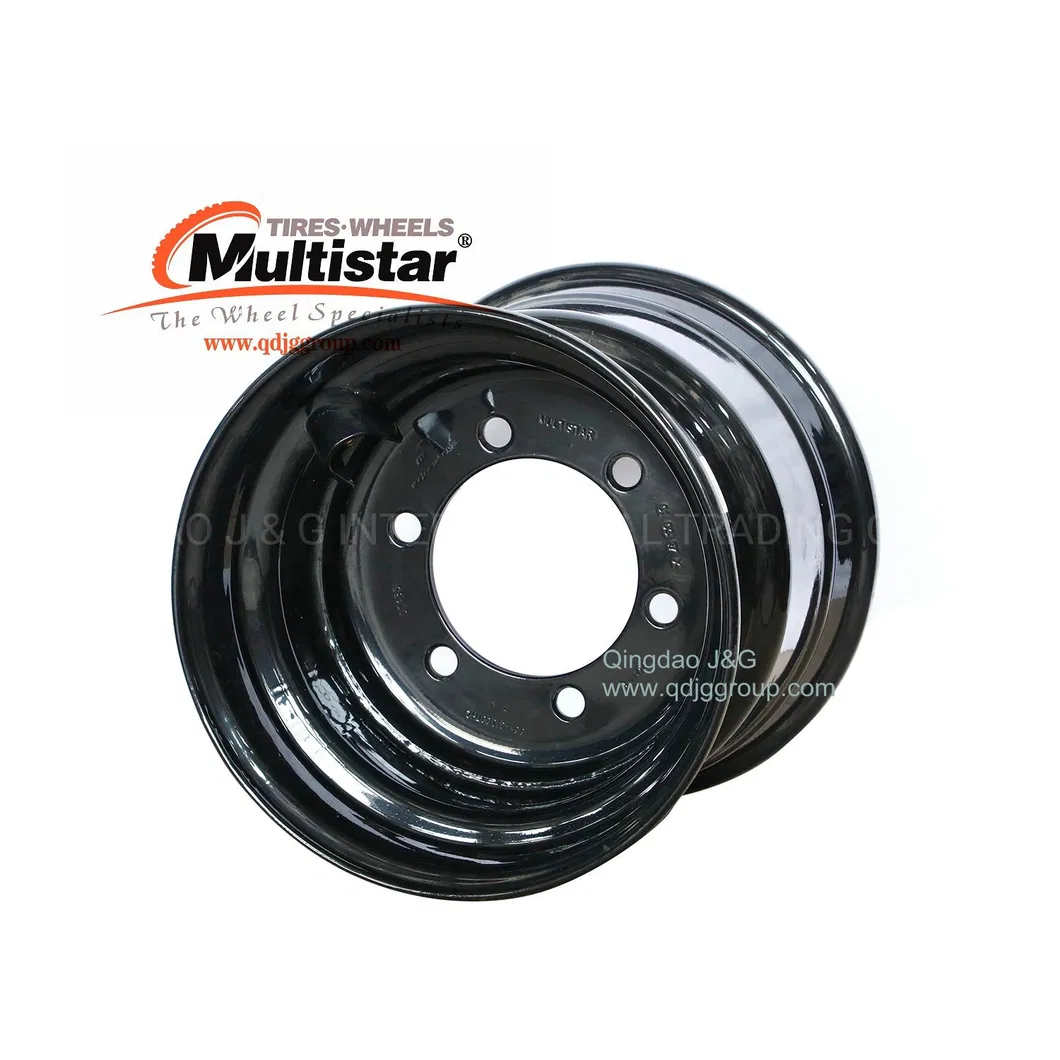

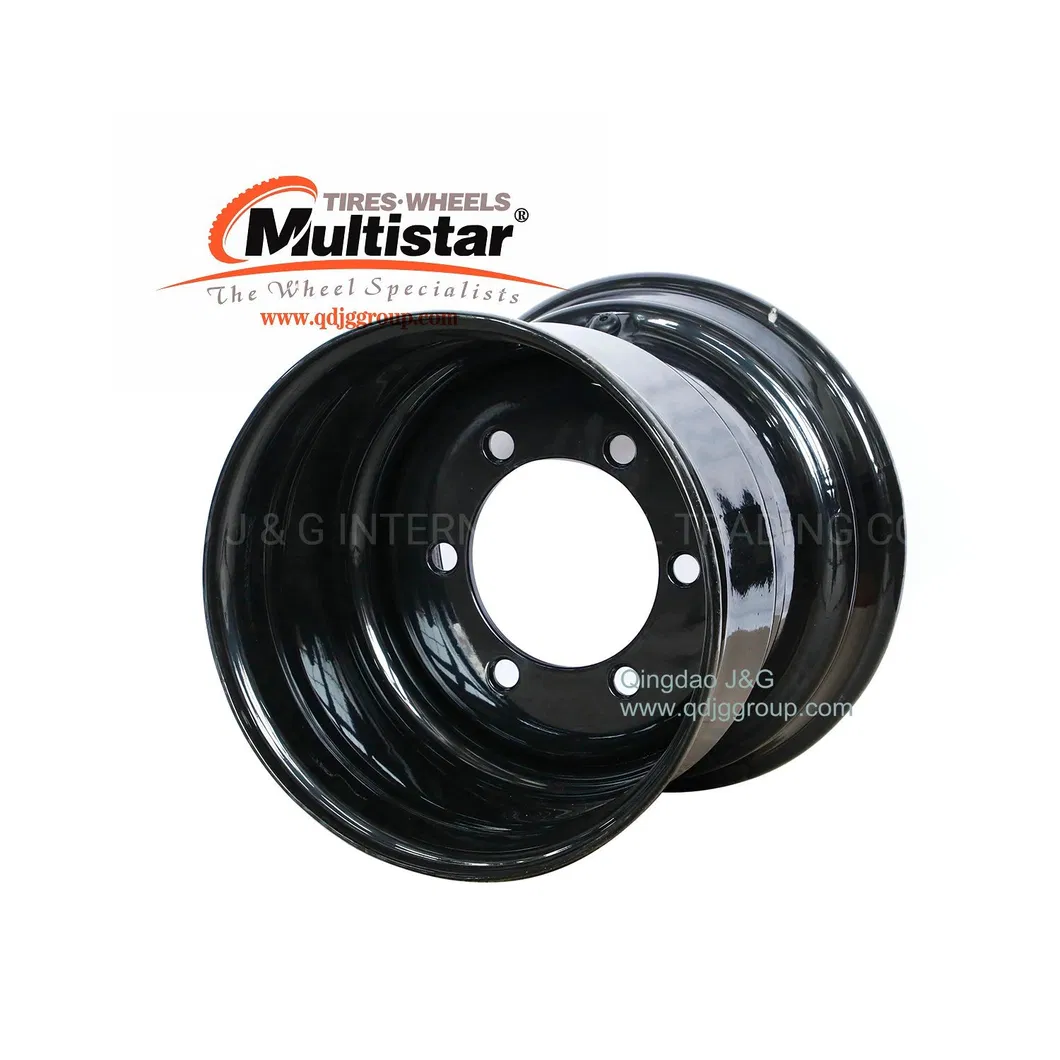

Wheel Rim 16.00X22.5
Wheel Rim 16.00X22.5
Wheel Rim 16.00X22.5
Wheel Rim 16.00X22.5
Wheel Rim 16.00X22.5
Wheel Rim 16.00X22.5

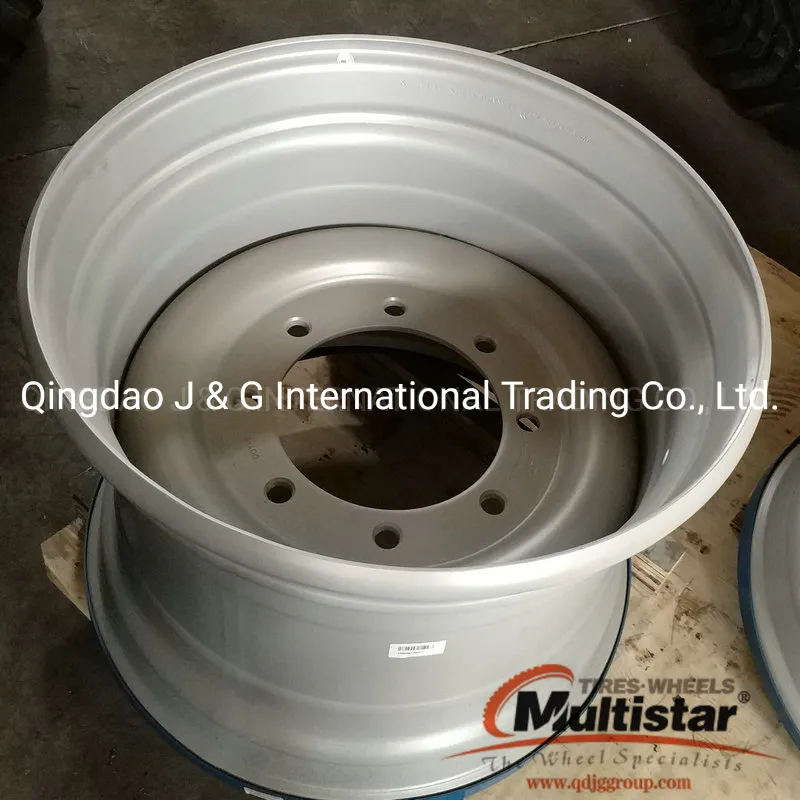

Product Display

Professional in agricultural wheel and tyres for trailer, tractor, harvester, combine, balers, spreader, feedmixers etc. Products are widely exported and serve the OE market globally.

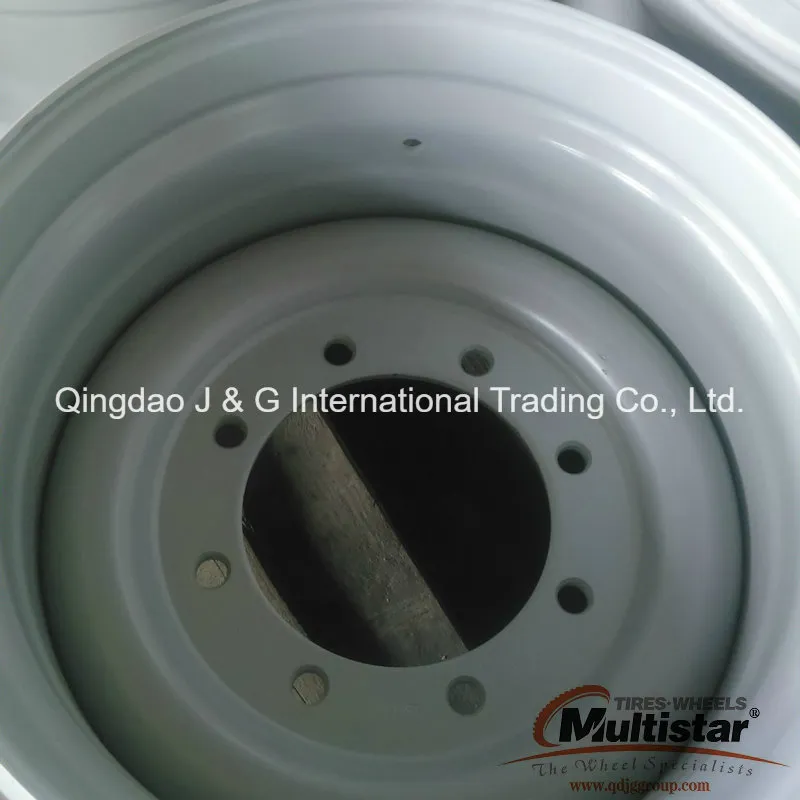

Technical Detail
  • Certifications: DOT/ISO approved.
  • Packaging: Securely packed in pallets.
  • Loading Capacity: 600 PCS per 40'HQ.
  • Design Standards: Refer to ETRTO/TRA/JATMA.
  • Bolt Hole Options: 06/205/161, 06/152.4/117.7, 08/203.2/152.4.
  • Warranty: 2 years quality guarantee.
  • Surface Treatment: Paint electro-coat and rust protection (Silver or custom colors).
Inch Description Wheels Tyres
15.5"one-piece 15° DC15.5X13.00400/60-15.5
15.5X16.00500/55-15.5
16.5"one-piece 15° DC16.5X8.259.50R16.5, 10-16.5
16.5X9.7512-16.5EM, 33X12.50R16.5
16.5X1236x14.5-16.5
17.5"one-piece 15° DC17.5X6.00HC215/75R17.5, 8R17.5
17.5X6.75HC9R17.5, 9.5R17.5
17.5X10.5-
22.5"one-piece 15° DC22.5X11.25385/65R22.5, 425R22.5
22.5X16.00500/45-22.5, 500/60R22.5, 550/60-22.5
22.5X20.00600/50-22.5, 650-50-22.5

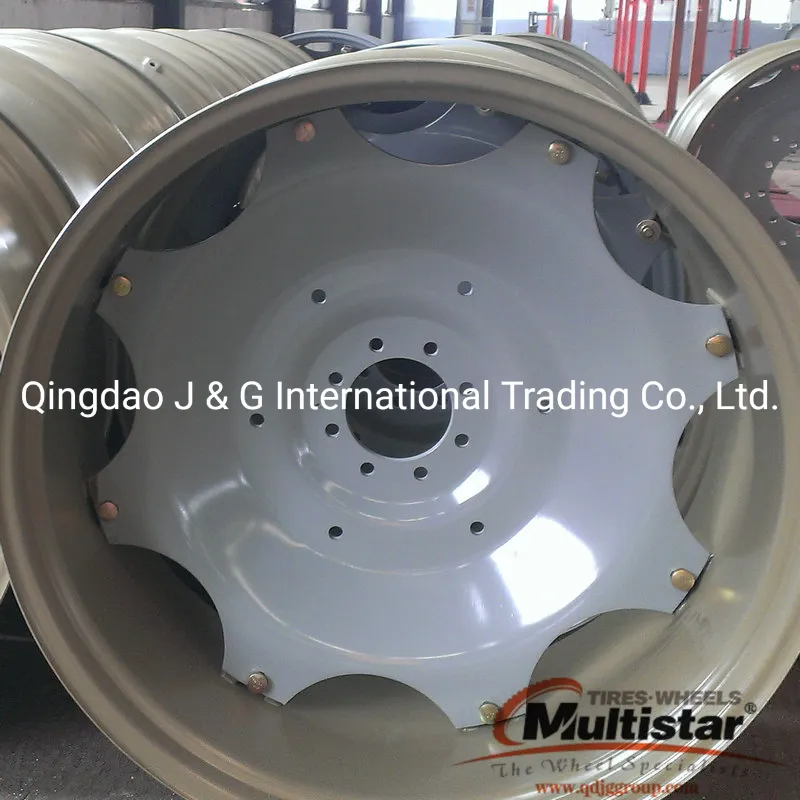

Steel Wheel Details
Size Type Description Tyres
12"one-piece8.50x1211.0/65-12
15"one-piece10LBx1512.5L-15, 31x11.50-15
17"one-piece17x1619.0/45-17, 500/50-17
20"one-piece20x13.00405/70-20, 425/75R20
22.5"one-piece22.5x16.00500/60-22.5, 550/60-22.5
26.5"one-piece26.5x24.00700/50-26.5
30.5"one-piece30.5x28.00800/45-30.5, 850/50-30.5

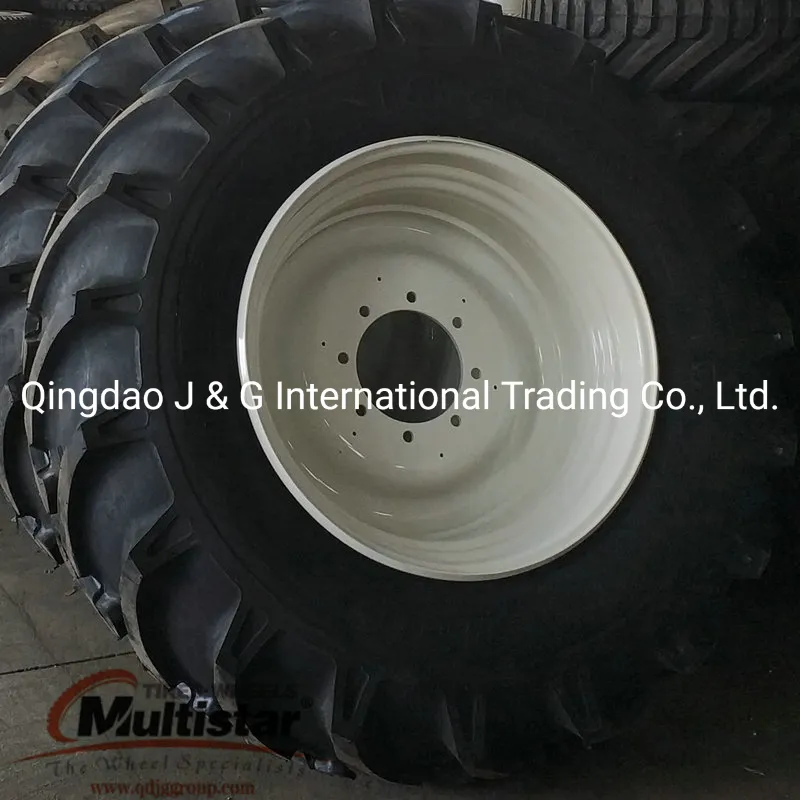

Production View
Technical Spec Sheet
Dimension Drawing
? Frequently Asked Questions
What machinery is the 16.00X22.5 wheel rim suitable for?
It is primarily designed for agricultural machinery, including tractors, farm trailers, chaser bins, spreaders, and harvesters.
What surface protection is applied to the wheels?
Our wheels undergo an electro-coat painting process for superior rust protection. The standard color is silver, but custom colors are available upon request.
Do these wheels come with a warranty?
Yes, we provide a 2-year quality guarantee on our steel agricultural wheel rims.
Are these rims compatible with tubeless tyres?
Yes, these are tubeless (TL) type rims designed for modern agricultural flotation tyres.
Can I order the wheels and tyres as a complete assembly?
Yes, we provide assembly services where the tyre is pre-fitted to the rim, making it ready for immediate installation upon delivery.
What international standards do your products follow?
Our wheel designs and manufacturing processes refer to ETRTO, TRA, and JATMA standards, and we are DOT and ISO certified.
